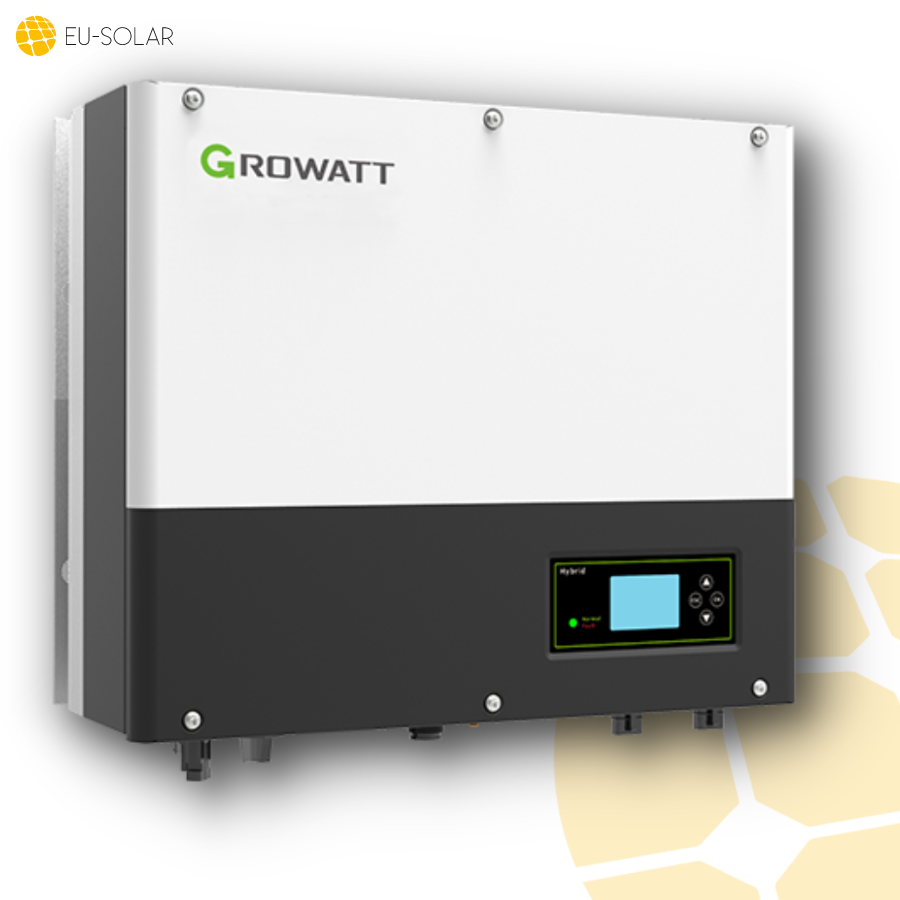

Growatt SPA 4000TL3 BH
In stock
Battery data (DC)
Type of battery
lithium
Continuous charging and discharging power
4000W
Max charging and discharging current
25A
Battery voltage range
100-550V
Output data (AC)
AC nominal power
4000W
Max. AC apparent power
4000VA
Adjustable power factor
0.8 capacitive…0.8 inductive
THDi
<3%
Max. output current
6,10A
AC grid connection type
3W+N+PE
Nominal AC voltage (range)
230V/400V (310-476V)
AC grid frequency (range)
50/60 Hz (45-55Hz/55-65 Hz)
Backup power(AC)
Nominal AC output frequency
50/60HZ
Switch time
<10ms
THDv
<3%
Max AC output power
4000W
Battery Max AC apparent power
4000VA
Battery Max. output current
6.10A
Size
Height
453.00mm
Depth
198.00mm
Width
505.00mm
Weight
30.00kg
General
Protection degree
IP65
Relative humidity
0-100%
Cooling
natural cooling
Topology
transformerless
Altitude
3000m
Nighttime power consumption
<13W
AC connection
connector
Display
LCD+LED
Warranty
10Year
Communication
RS485
yes
CAN
yes
USB
yes
WIFI
optional
GPRS
optional
RF
optional
Protection devices
AC surge protection
Type II
Battery reverse protection
yes
Insulation resistance monitoring
yes
AC short-circuit protection
yes
Ground fault monitoring
yes
Grid monitoring
yes
Anti-islanding protection
yes
Residual-current monitoring unit
yes
