MIN 6000TL-X

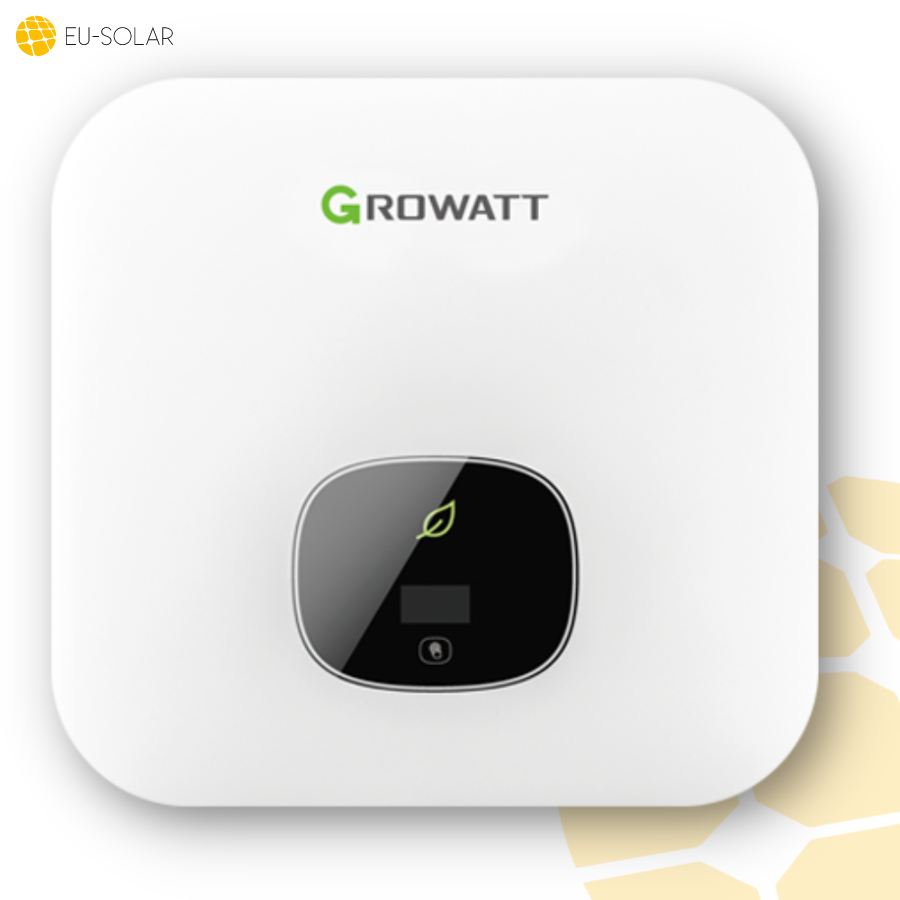

Growatt MIN 6000TL-X
Input data (DC)
Starting voltage
100V
Nominal voltage
360.00V
MPPT voltage range
80-550
Number of MPPTs
2
PV String / MPPT
1
Max input current / MPPT
13.5
Max. short-circuit current / MPPT
16.9
Battery data (DC)
Battery voltage range
0V
Output data (AC)
Adjustable power factor
0.8 capacitive…0.8 inductive
THDi
<3%
Max. output current
27,20A
Nominal AC voltage (range)
230V (180-280V)
AC grid frequency (range)
50/60 Hz (45-55Hz/55-65 Hz)
Efficiency
European efficiency
97,50%
Maximum efficiency
98.40%
MPPT efficiency
99.90%
Size
Height
350.00mm
Depth
160.00mm
Width
375.00mm
Weight
10.80kg
General
Relative humidity
0-100%
Cooling
natural cooling
Topology
transformerless
Altitude
4000m
Nighttime power consumption
<1W
Operating temperature
-25-+60°C
DC connection
H4/MC4(optional)
AC connection
connector
Display
OLED+LED/WIFI+APP
Warranty
10Year
Communication
RS485
yes
LAN
optional
USB
yes
WIFI
optional
GPRS
optional
RF
optional
Protection devices
DC surge protection
Type II
Insulation resistance monitoring
yes
AC short-circuit protection
yes
Ground fault monitoring
yes
Grid monitoring
yes
Anti-islanding protection
yes
Residual-current monitoring unit
yes
AFCI protection
yes
