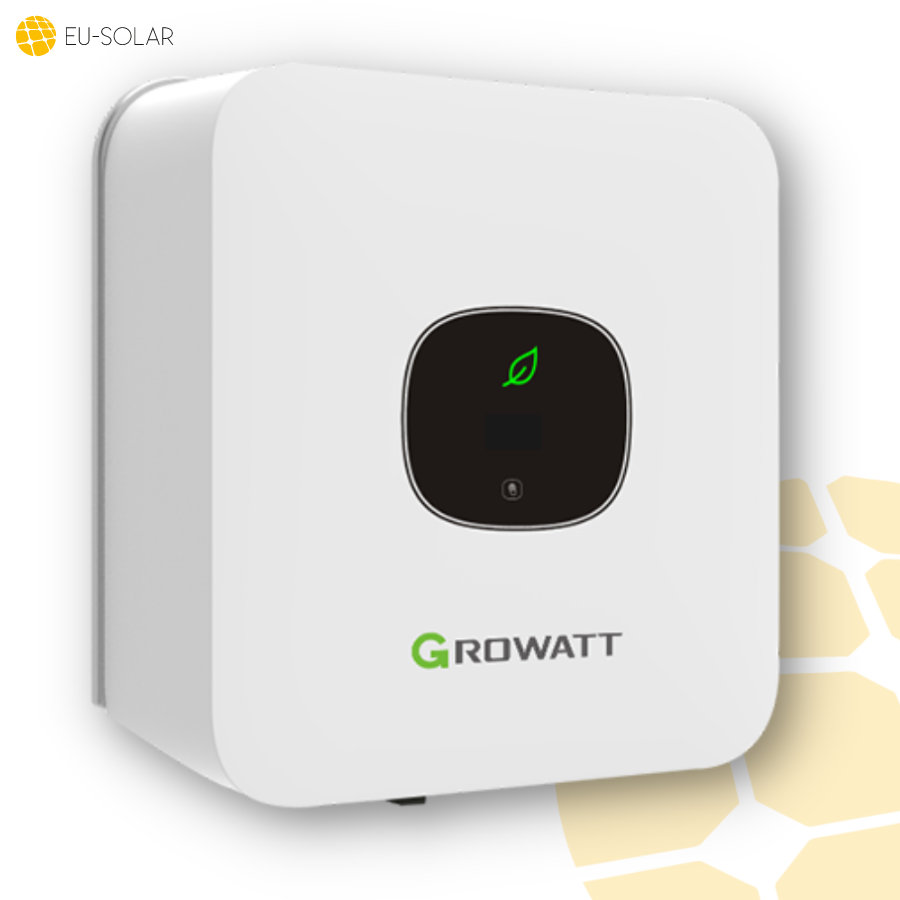

Growatt MIC 2500TL-X
In stock
Input data (DC)
Maximum recommended PV output
3500W
Max. DC voltage
550V
Starting voltage
80V
Nominal voltage
360.00V
MPPT voltage range
65-550
Number of MPPTs
1
PV String / MPPT
1
Max input current / MPPT
13
Max. short-circuit current / MPPT
16
Battery data (DC)
Battery voltage range
0V
Output data (AC)
AC nominal power
2500W
Max. AC apparent power
2500VA
Adjustable power factor
0.8 capacitive…0.8 inductive
THDi
<3%
Max. output current
11,90A
AC grid connection type
einzelphase
Nominal AC voltage (range)
230V (180-280V)
AC grid frequency (range)
50/60 Hz (45-55Hz/55-65 Hz)
Backup power(AC)
Nominal AC output frequency
50/60 Hz (45-55Hz/55-65 Hz
Efficiency
European efficiency
97,00%
Maximum efficiency
97.60%
MPPT efficiency
99.90%
Size
Height
254.00mm
Depth
138.00mm
Width
274.00mm
Weight
6.20kg
General
Protection degree
IP65
Relative humidity
0-100%
Cooling
natural cooling
Topology
transformerless
Altitude
4000m
Nighttime power consumption
<0.5W
DC connection
H4/MC4(optional)
AC connection
connector
Display
OLED+LED/WIFI+APP
Warranty
10Year
Communication
RS485
yes
LAN
optional
USB
yes
WIFI
optional
GPRS
optional
RF
optional
Protection devices
Insulation resistance monitoring
yes
AC short-circuit protection
yes
Ground fault monitoring
yes
Grid monitoring
yes
Anti-islanding protection
yes
Residual-current monitoring unit
yes
AFCI protection
yes
